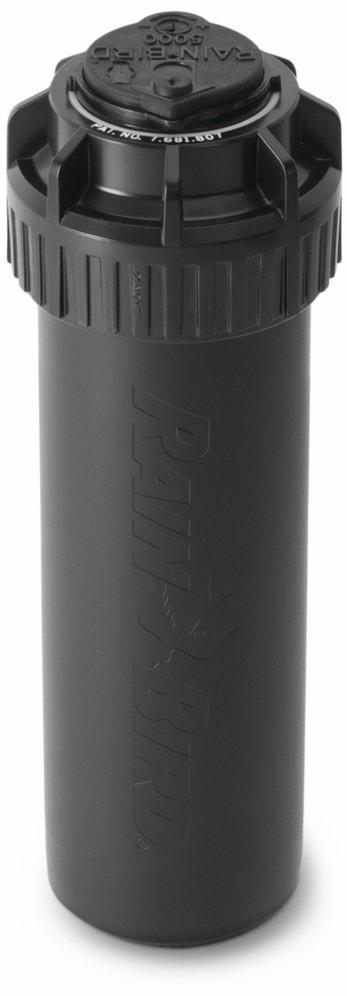

4" 5000 Series Part-Circle Pattern (40-360 Degree) Rotor Pop-Up Sprinkler

Brand:	Rainbird
Series:	5000
Sku:	Y54007

Authorized Dealer

$18.59

10+ in stock (usually ships in 1-2 business days)

Qty

Description

Rain Bird 5004-PC Pop-Up Rotor, 4 Inch H Pop-Up, 25 - 50 ft Operating Radius, 3/4 Inch FNPT Inlet, Plastic Case. Relax with the knowledge your landscape is being watered by reliable 5000 Series Rotors and industry-leading Rain Curtain Nozzle Technology. Rain Bird® 5000 Series Rotors are ideal for medium to large-size hillsides and shrub areas and evenly distribute water from 25 to 50 feet. Superior Distribution Uniformity. 5000 Series Rotors with Rain Curtain Technology are engineered to deliver a uniform spray pattern, giving you a consistently green lawn throughout. The larger water droplets produced by Rain Curtain technology prevent misting and airborne evaporation so the right amount of water is delivered to the right place, saving you water and money. Gentle close-in watering eliminates dry spots around the rotor, prevents seed washout and allows the turf to grow healthy with no matting or bending.

Dimensions:
H=7.375, W=4.0, D=4.0

Heavy-duty retract spring assures positive pop-down
Heavy-duty cover assembly for extra durability in residential or commercial applications
Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25' to 50' (7.6m to 15.2m) distance of throw
Slip clutch mechanism for quick adjustment on installation
Standard rubber cover for extra protection
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Self-cleaning arc adjustment screw
Self-aligning nozzles
40-360° arc rotation and reversing full-circle rotation in one. (A non-reversing full-circle only unit is also available)
MPR nozzle set simplifies design and installation by providing matched precipitation from 25' to 35' (7.6 to 10.7m)
Additional O-rings and seals for extra protection in "gritty" water
Rain Curtain Nozzles standard on all 5000 Series Rotors. ◾Large water droplets for greater wind resistance ◾Effective close-in watering - ◾Even distribution over the entire radius ◾Even distribution over the entire radius
Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Rain Curtain Nozzles standard on all 5000 Series Rotors. ◾Large water droplets for greater wind resistance◾Effective close-in watering - ◾Even distribution over the entire radius◾Even distribution over the entire radius

Manufacturer Supplied Links

Manufacturer Product Page

Specification Sheet

Manufacturer Web Site

Shipping Information

Fast order fulfillment and ground shipping of all orders from one our Canadian warehouses, with no duty or brokerage charges.
